• Aluminium Manifold

specifications7596



Features

  • Intelligent manifold, that protects your moulds and optimises your production
  • Monitor flow, pressure and temperature in the cooling circuits
  • Automated alarm functions, letting you know, when parameters differs from your preferred settings

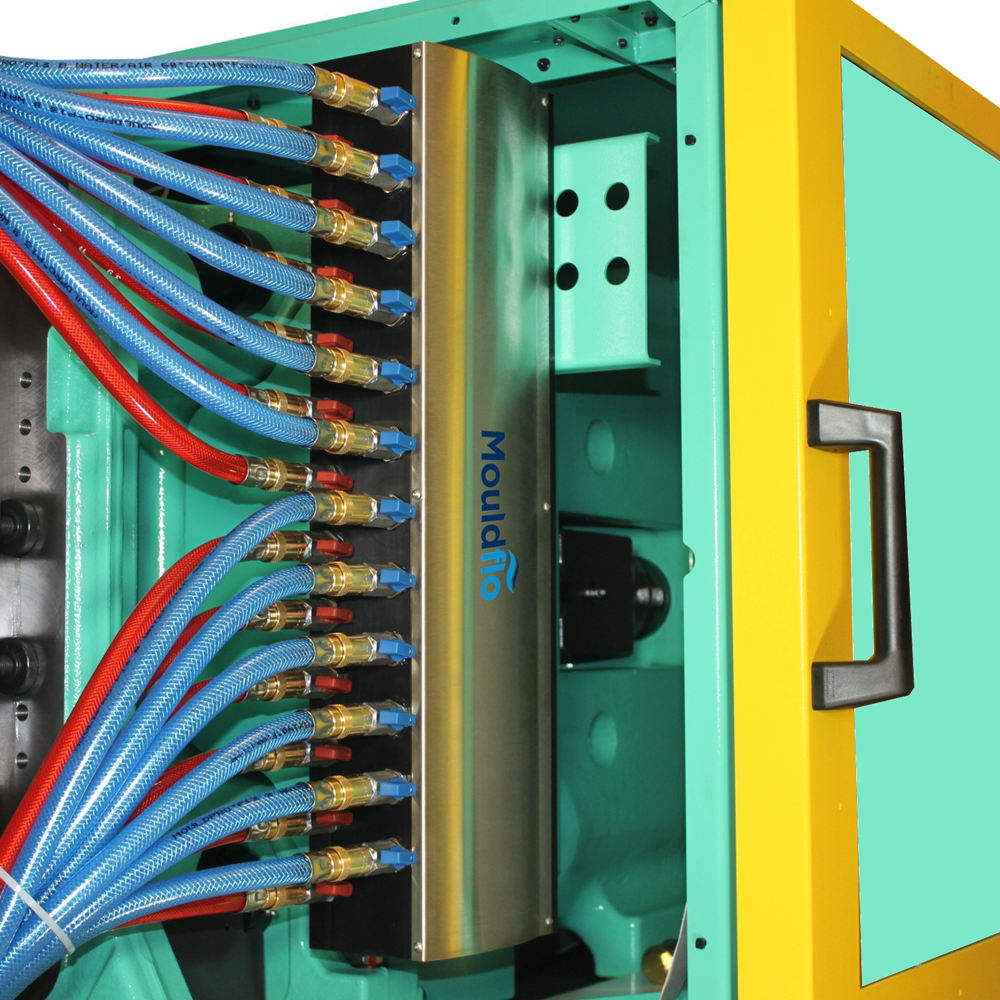

  • Mount directly on the machine
  • Integrate with your central data system
  • Daisy-chain several manifolds together and get the complete overview on one screen
  • Compatible with almost any type of injection moulding machine



Specifications - Aluminium Manifolds

Manifold feed

1-1/2” BSP

Manifold ports

1/2” BSP

Number of ports

4/8/12 Standard

Sensor type

Vortex

Range (Flow)

1-15 litres/min or 2-40 litres/min

Power supply

12 VDC

Manifold connection

Hasco / DME / Staubli® (optional)

Operating temperature (max)

Standard 0-100°C / High temp: 0-120°C

Operating pressure (max)

10 bar

Temperature sensing

Per circuit (return)

Flow sensing

Per circuit (return)

Temperature sensor – main inlet

Yes

Accuracy (Flow)

1.5% fs

Accuracy (Temperature)

+/- 1.5% fs

Resolution (Temperature)

0.5°C



Dimensions - Aluminium Manifolds

No. of ports



Total length



Depth



Height




4



210mm



180mm



124mm



8



410mm



180mm



124mm



12



610mm



180mm



124mm



8 (Short pitch)



305mm



180mm



124mm



12 (Short pitch)



445mm



180mm



124mm





No. of ports



Distance between each port



Ports



4



50mm



1/2” BSPP female

8



50mm



1/2” BSPP female

12



50mm



1/2” BSPP female

8 (Short pitch)



35mm



1/2” BSPP female

12 (Short pitch)



35mm



1/2” BSPP female
